HOUSING WAFER TERMINAL
0.5mm Terminal / Housing / Wafer

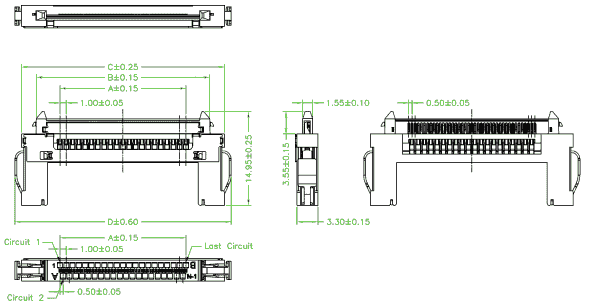

0505H-XXB-U


Temperature Range::
- 25°C to +85°C

Current Rating::
0.7A AC,DC

Voltage Rating::
100V AC,DC

Withstanding Voltage::
500V AC/minute

Contact Resistance::
50m ohm. Max

Insulation Resistance::
100M ohm. Min
