HOUSING WAFER TERMINAL
3.5mm Terminal / Housing / Wafer

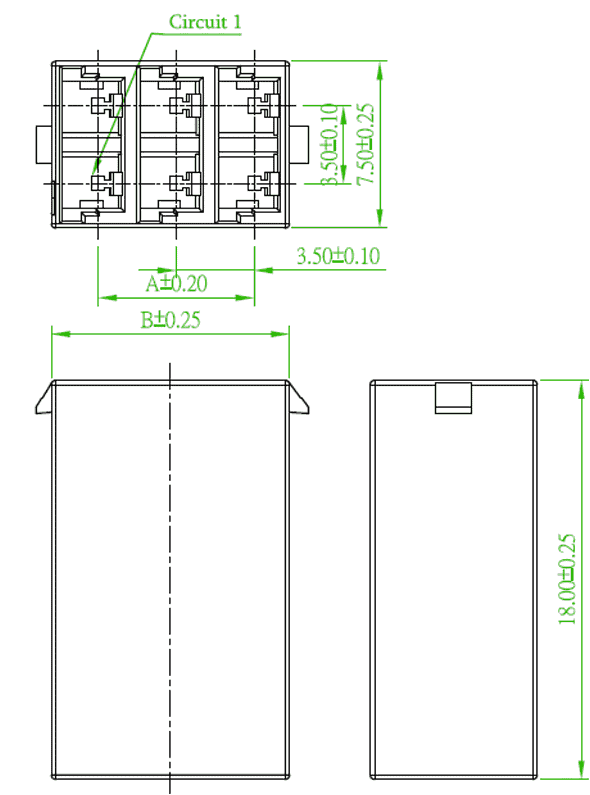

LCDH-M2PXXW-L


Current Rating::
1A AC,DC

Voltage Rating::
1400V AC,DC

Temperature Range::
- 25°C to +85°C

Contact Resistance::
10m ohm. Max

Insulation Resistance::
1000M ohm. Min

Withstanding Voltage::
3800V AC/minute
