HOUSING WAFER TERMINAL
4.2mm Terminal / Housing / Wafer

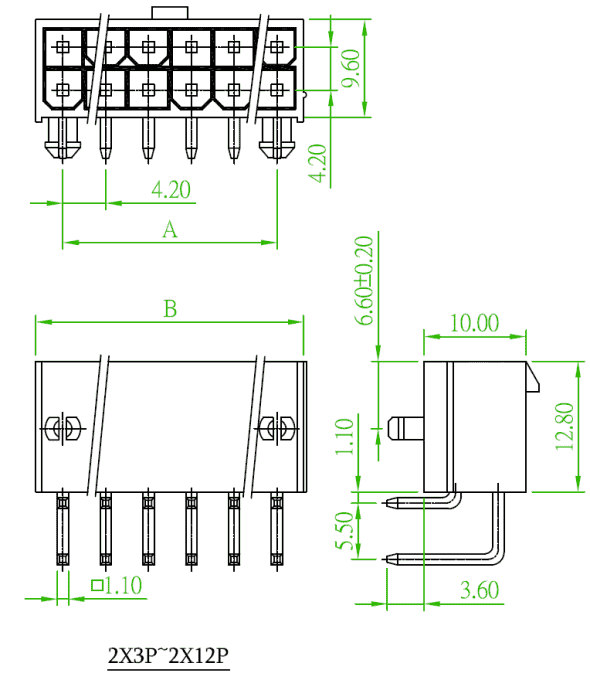

4200RQ-2XXTWX-L


Current Rating::
9A AC,DC

Voltage Rating::
600V AC,DC

Temperature Range::
- 25°C to +85°C

Contact Resistance::
10m ohm. Max

Insulation Resistance::
1000M ohm. Min

Withstanding Voltage::
1500V AC/minute
