CONNECTORS
SATA and ESATA

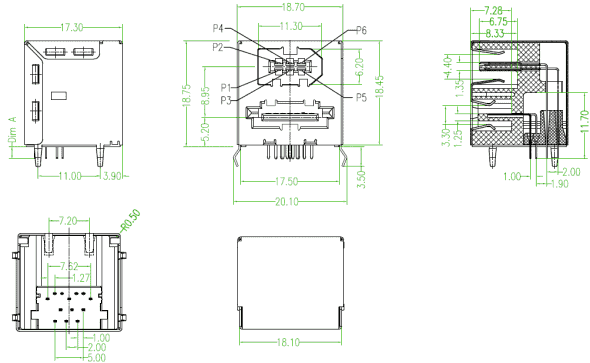

ESATAIE-13SR-U


Operation Temperature:
- 55°C to +125°C

Current Rate:
1.5A

Insulation Resistance:
eSATA: 1000M ohm. Min

Insulation Resistance:
1394: 100M ohm. Min

Contact Resistance:
30m ohm. Max

Dielectric Voltage:
500V AC/minute
