PLASTIC PARTS FOR PCB
01 | SPACER SUPPORT

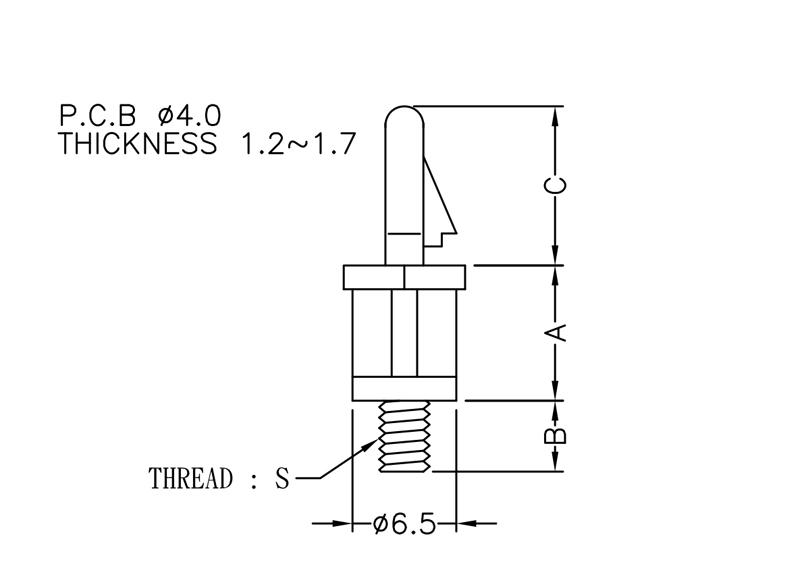

SCB-8.5S

● TITLE：SPACER SUPPORT
● PART NO：SCB - 8.5S (see datasheet for measures)
MATERIAL ：NYLON 66(UL)
FLAME CLASS :UL94V - 0 / UL94V - 2
COLOR ：NATURAL / BLACK
UNIT：mm

Application：To install PC board by pressing directly, another end installed with screw or tapping.

Note：All measurement does not include gate which raises under 0.3mm.
