PLASTIC PARTS FOR PCB
02 | LED SUPPORT
LPE2-5-22

● TITLE：LIGHT PIPE

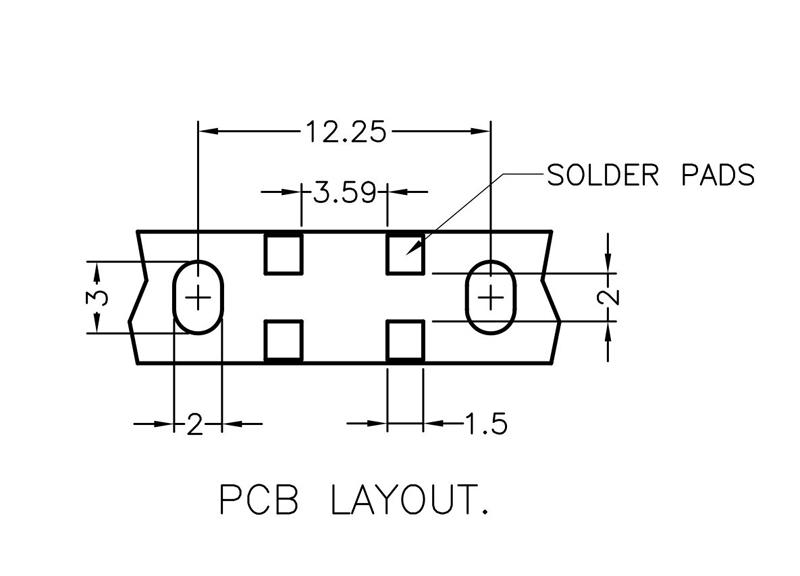

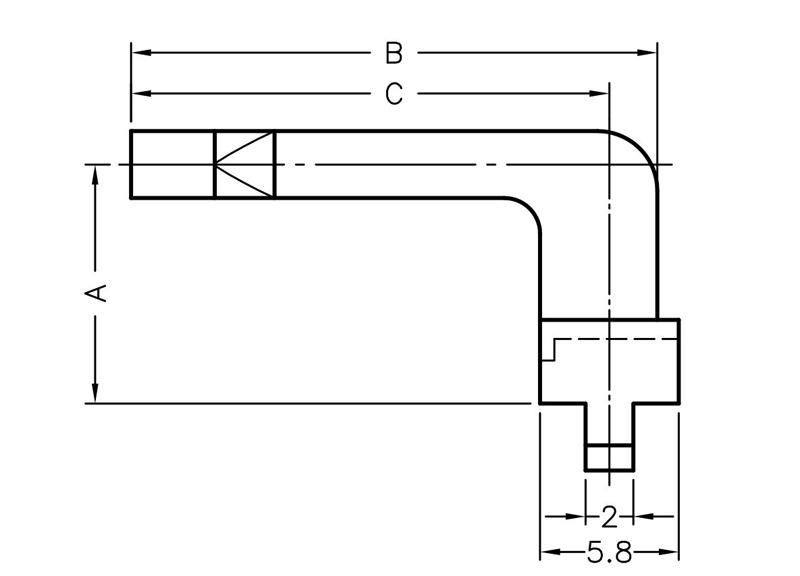

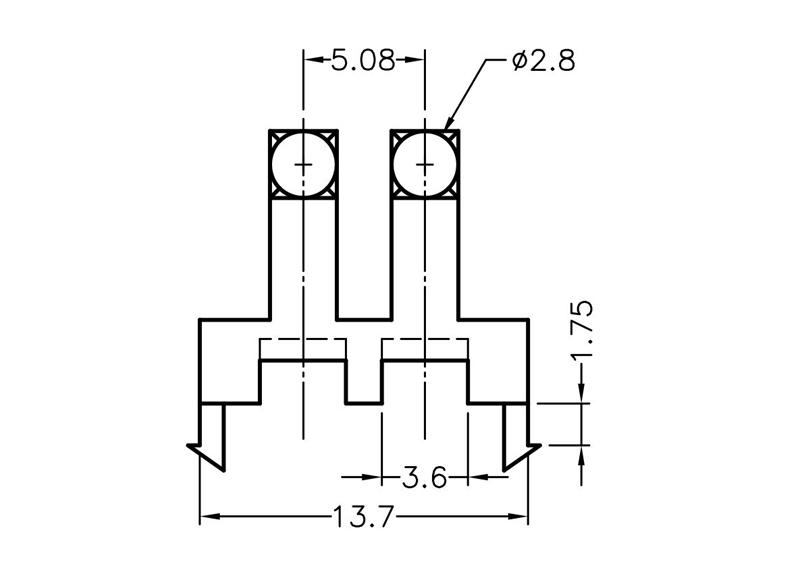

● PART NO：LPE2 - 5 - 22 (see datasheet for measures)
MATERIAL ：PC(UL)
FLAME CLASS ：UL94V - 2
COLOR ：TRANSPARENT
UNIT：mm

Application：To guide the S.M.T LED light on case panel, and make light soften and smooth.
