PLASTIC PARTS FOR PCB
03 | LED SUPPORT 90°
LED1L-6

● TITLE：LED HOLDER

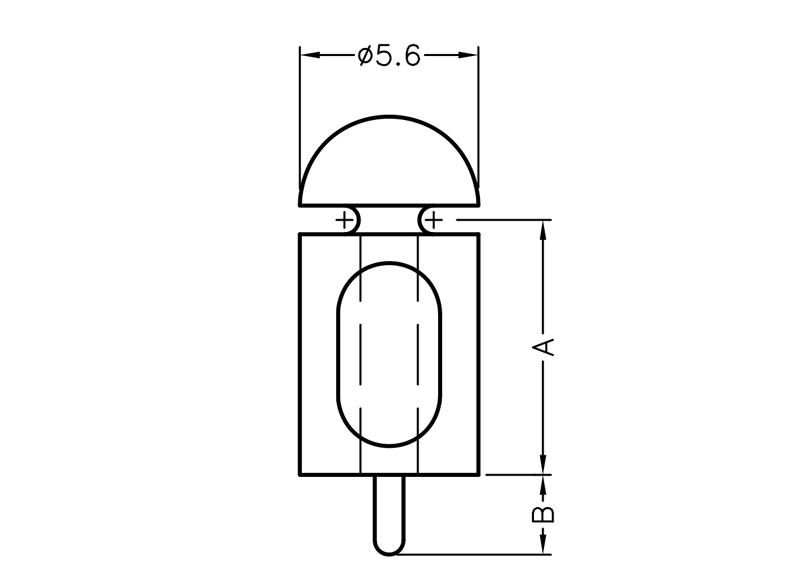

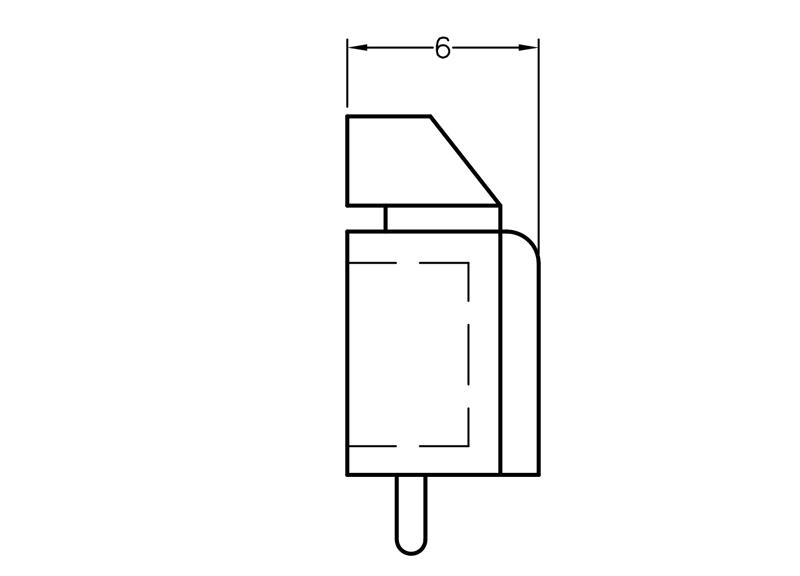

● PART NO：LED1L - 6 (see datasheet for measures)
MATERIAL ：NYLON 66(UL)
FLAME CLASS :UL94V - 0 / UL94V - 2
COLOR ：BLACK/NATURAL
UNIT：mm

Application：To weld LED on board 90 degrees, with same height, and indexing pins, but avoid crooked.
