PLASTIC PARTS FOR PCB
04 | MOUNT-CLIP LOCK CABLE
FCA-7
● TITLE：WIRE MOUNT

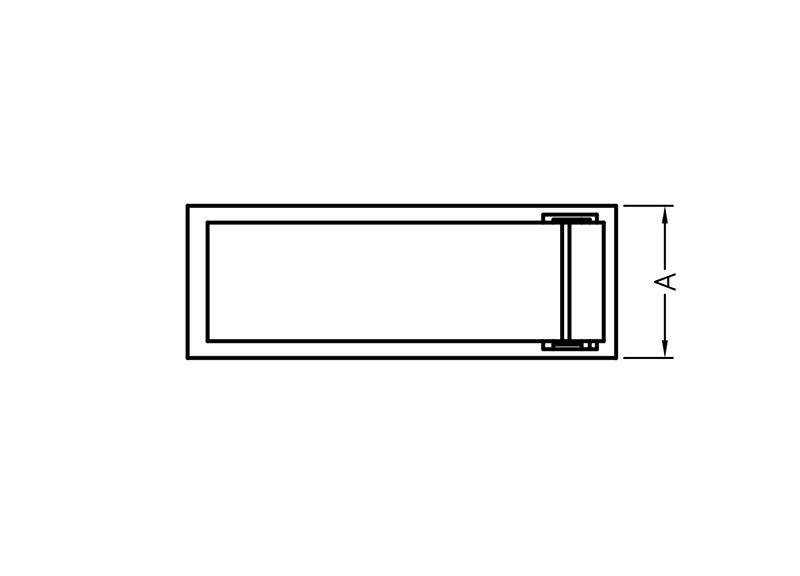

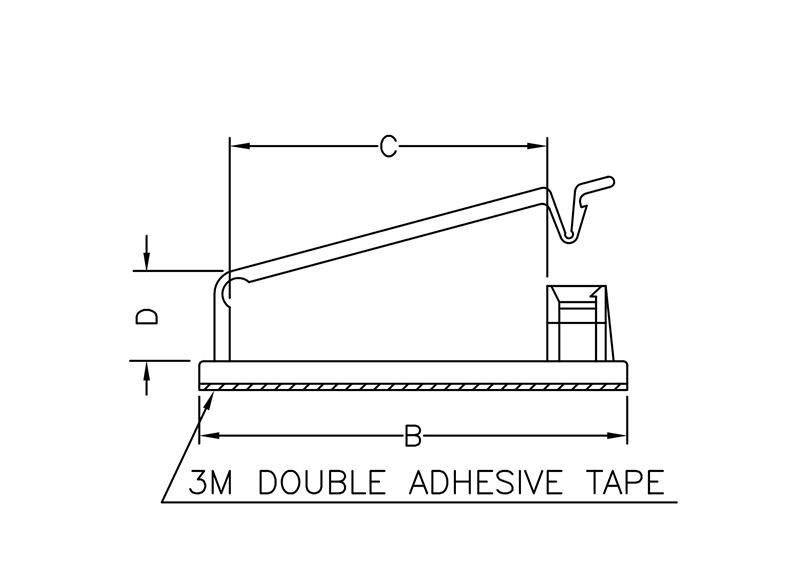

● PART NO：FCA - 7 (see datasheet for measures
MATERIAL ：NYLON 66(UL)
FLAME CLASS :UL94V - 0 / UL94V - 2
COLOR ：BLACK / NATURAL
UNIT：mm
Application：Adhesive type, to arrange the cables in PC/electronic device,easy to assemble and neat but not tear off.
Note：
1.It is normal if it is shrinking.
2.All measurements do not include gate which raises under 0.3mm.
3.The adhesive tape is cut by hand ,it is normal if there is a not unified edge.
4.The Height is not include the releasing paper and adhesive tape’s thickness.
5.Please peel off the paper from backing backing lightly to avoid tear off the coating and make bubbling.
