PLASTIC PARTS FOR PCB
04 | MOUNT-CLIP LOCK CABLE
FCH-30
● TITLE：FLAT CABLE CLAMP

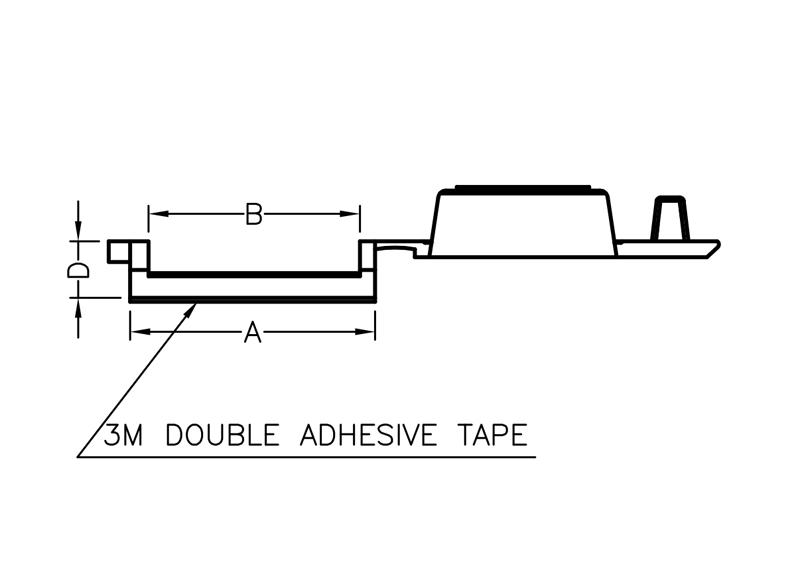

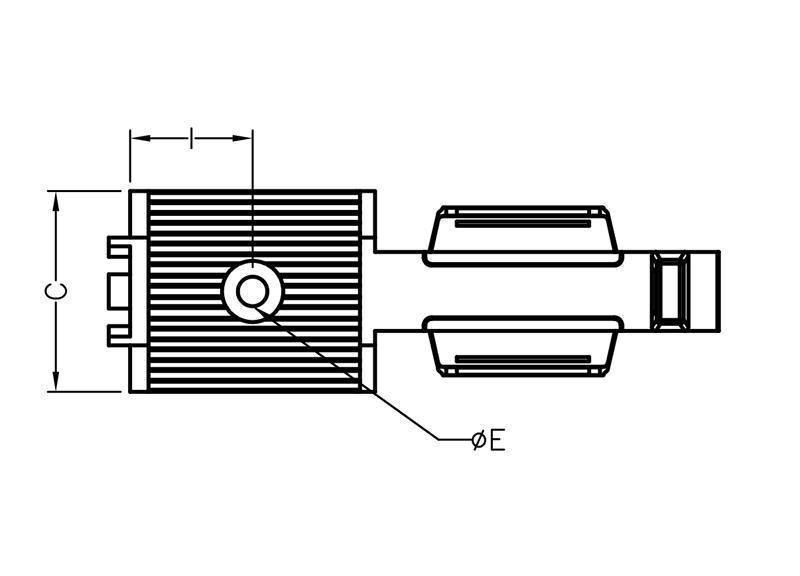

● PART NO：FCH - 30 (see datasheet for measures)
MATERIAL ：NYLON 66(UL)
FLAME CLASS :UL94V - 0 / UL94V - 2
COLOR ：NATURAL / BLACK / GRAY
UNIT：mm
Application：Adhesive type, to arrange the cables in PC/electronic device, easy to assemble and neat but not tear off.
Note：
1.All measurements do not include gate which raises under 0.3mm.
2.The adhesive tape is cut by hand ,it is normal if there is a not unified edge.
3.The Height does not include the releasing paper and adhesive tape’s thickness.
4.Please peel off the paper from backing backing lightly to avoid tear off the coating and make bubbling.
