TERMINAL BLOCKS
PLUG and SOCKET Ter. Block

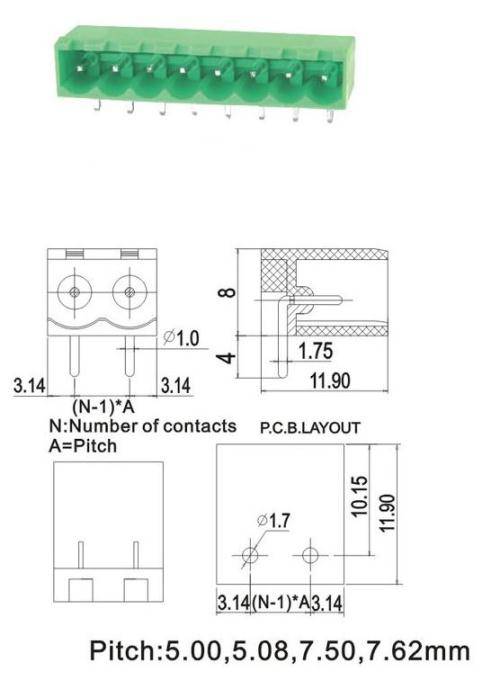

KF2EDGCR-5.0/ 5.08/ 7.5/ 7.62-XX

Pitch : 5.00, 5.08, 7.50, 7,62mm

MATERIAL :
Pin Header Brass, Tin plated
Housing PA66, UL94V - 0

ELECTRICAL :
Rated voltage 300V
Rated Current 15A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.

MECHANICAL :
Temp. Range - 40C to +105C
Max Soldering + 250C for 5 sec.
