TERMINAL BLOCKS
PLUG and SOCKET Ter. Block

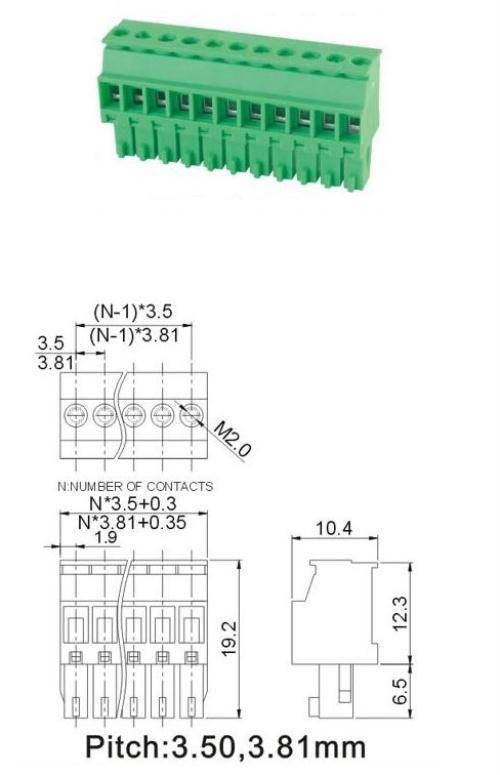

KF2EDGKA-3.5 / 3.81-XX

Pitch : 3.50, 3,81mm

MATERIAL :
Screws M2 Steel Zinc plated
Contact Phosphor bronze
Housing PA66, UL94V - 0

ELECTRICAL :
Rated voltage 300V
Rated Current 8A.
Contact resistance 20mOhm
Insulation resistance 5000Mohm/1000V
Withstanding Voltage AC1500/1Min.
Wire range 28 - 16AWG 1.5mm2

MECHANICAL :
Temp. Range - 40C to +105C
Max. Soldering +250C for 5 sec.
Torque 0,2Nm (1.7lb.in)
Strip Lenght 6 - 7mm
