TERMINAL BLOCKS
SPRING Ter. Block

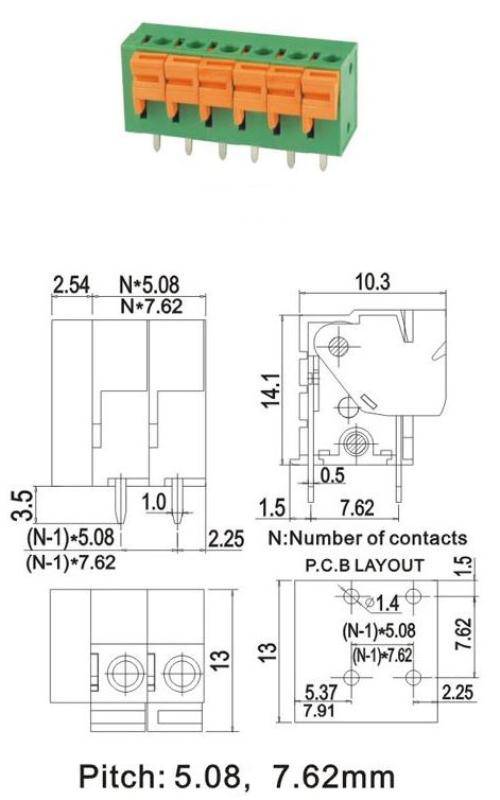

KF142V-5.08 / 7.62-XX

Pitch : 5.08, 7.62mm

Material
Pin Header : Brass Tin Plated
Housing : PA66, UL94V - 0

Electrical
Rated Voltage : 250V.
Rated Current : 10A.
Contact Resistance : 20mOhm
Insulation resistance : 5000Mohm/1000V
Withstanding Voltage : AC1500V/1Min
wire range : 22 - 14AWG 1.5mm2

Mechanical
Temp. Range : - 40C to +105C
Max. Soldering : +250C for 5sec.
Strip lenght : 10mm
