TERMINAL BLOCKS
SPRING Ter. Block

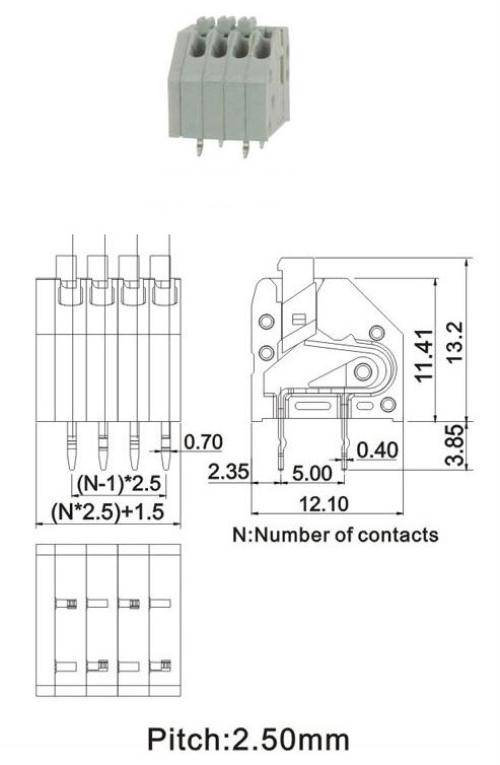

KF250A-2.5-XX
Pitch : 2.50mm
Material
Pin Header : Brass Tin Plated
Housing : PA66, UL94V - 0
Electrical
Rated Voltage : 250V.
Rated Current : 8A.
Contact Resistance : 20mOhm
Insulation resistance : 5000Mohm/1000V
Withstanding Voltage : AC1500V/1Min
wire range : 22 - 16AWG 1.5mm2
Mechanical
Temp. Range : - 40C to +105C
Max. Soldering : +250C for 5sec.
Strip lenght : 8 - 9mm
