TERMINAL BLOCKS
SPRING Ter. Block

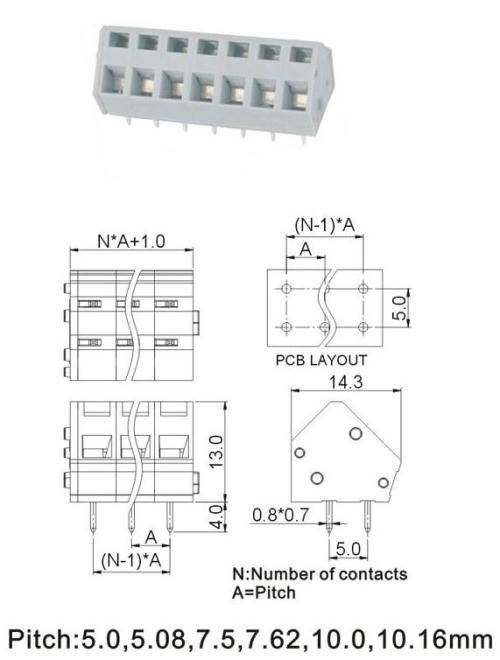

KF245-5.0/ 5.08/ 7.5/7.62/10.0/ 10.16-XX

Pitch : 5.0, 5.08, 7.5, 7.62, 10.0, 10.16mm

Material
wire guard : Stainless steel (SUB301)
Pin Header : Brass Tin Plated
Housing : PA66, UL94V - 0

Electrical
Rated Voltage : 300V.
Rated Current : 15A.
Contact Resistance : 20mOhm
Insulation resistance : 5000Mohm/1000V
Withstanding Voltage : AC2000V/1Min
wire range : 22 - 18AWG 2.5mm2

Mechanical
Temp. Range : - 40C to +105C
Max. Soldering : +250C for 5sec.
Strip lenght : 5 - 6mm
