TERMINAL BLOCKS
SPRING Ter. Block

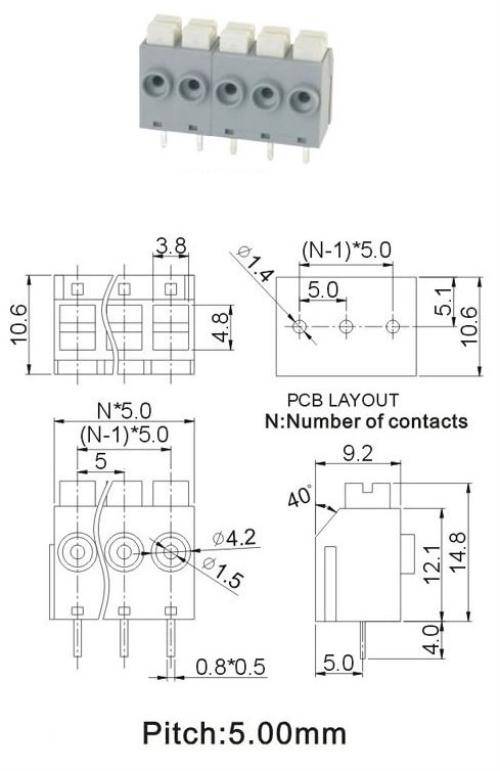

KF390-5.0-XX

Pitch : 5.0mm

Material
wire guard : Stainless steel (SUB301)
Pin Header : Brass Tin Plated
Housing : PA66, UL94V - 0

Electrical
Rated Voltage : 300V.
Rated Current : 8A.
Contact Resistance : 20mOhm
Insulation resistance : 5000Mohm/1000V
Withstanding Voltage : AC2000V/1Min
wire range : 22 - 16AWG 1.5mm2

Mechanical
Temp. Range : - 40C to +105C
Max. Soldering : +250C for 5sec.
Strip lenght : 7 - 7.5mm
