TERMINAL BLOCKS
SPRING Ter. Block

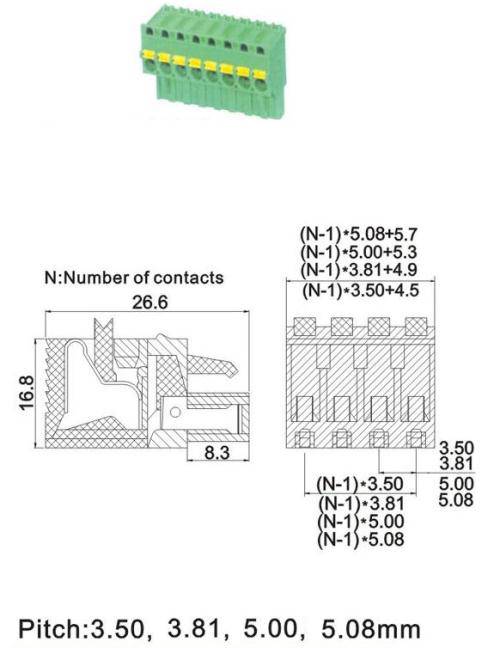

KF15E-3.5/ 3.81/ 5.0/ 5.08-XX

Pitch : 3.50, 3.81, 5.00, 5.08mm

Material
wire guard : Stainless steel
Housing : PA66, UL94V - 0

Electrical
Rated Voltage : 300V.
Rated Current : 10A.
Contact Resistance : 20mOhm
Insulation resistance : 5000Mohm/1000V
Withstanding Voltage : AC2000V/1Min
wire range : 24 - 12AWG 2.5mm2

Mechanical
Temp. Range : - 40C to +105C
Max. Soldering : +250C for 5 sec.
Strip lenght : 10 - 11mm
