IDC SOCKET, BOX HEADER
Pitch 2.54mm

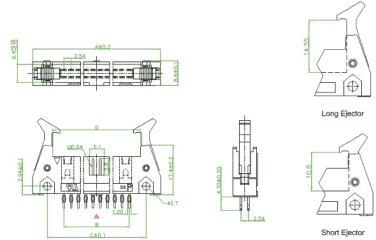

EDH1FS-XX-L

Current Rate: 3 AMP
Insulator Resistance:: 1000M ohm. Min.
Contact Resistance:: 20m ohm. Max.
Delectric Voltage:: 1000V AC for 1 Min.
Operation Temperature:: - 40°C to +105°C
