CONNECTORS
Pin-Fem. Header 3,96 / 4,2 / 5,08 mm

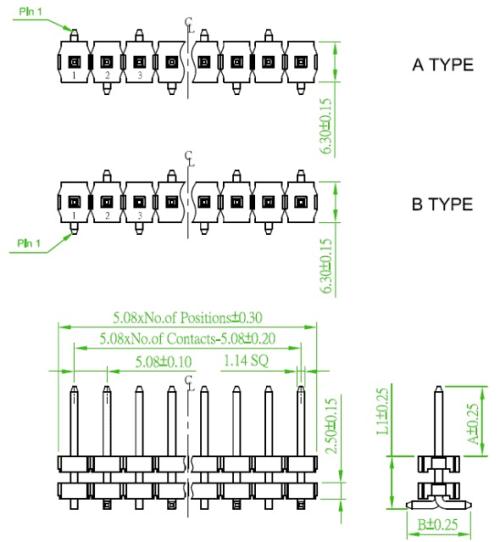

PH8DM25-1XX-U

Pin Header 5.08mm 1 Row H=2.5mm SMT / Stack SMT Type

Current Rate:: 7 AMP
Insulation Resistance:: 1000M ohm Min.
Contact Resistance:: 20m ohm Max.
Dielectric Voltage:: 1000V AC for 1 Min.
Operation Temperature:: - 40°C to +105°C
