THT - Piezo Transducer

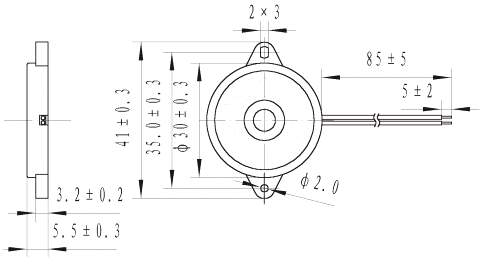

T3055DW
Rated Voltage (Vp - p): 12
Operating Voltage (Vp - p): 3 ~ 24
Resonance Frequency (Hz): 1300
Capacitance at 120Hz (pF): 20000 ± 30%
Sound Output at 10cm (dB): ≥ 80
Current Consumption (mA): ≤ 12
Operating Temperature (°C): - 20 ~ +60
Storage Temperature (°C): - 30~ +70
Weight (g): 4
