THT - Piezo Transducer

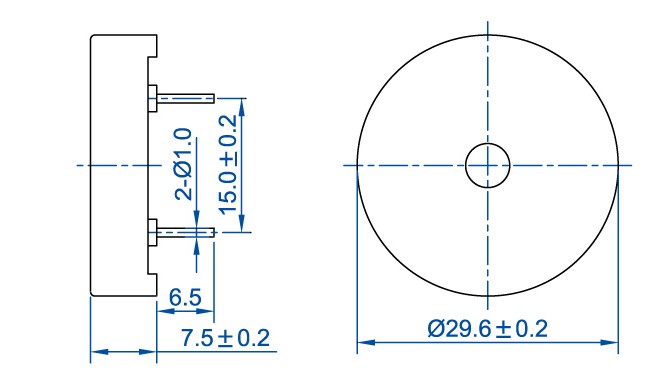

T3075AD
Rated Voltage (Vp - p): 12
Operating Voltage (Vp - p): 1 ~ 30
Resonance Frequency (Hz): 2500 ± 500
Capacitance at 120Hz (PF): 20000 ± 30%
Sound Output at 10cm (dB): ≥ 85
Current Consumption (mA): ≤ 10
Operating Temperature (°C): - 20 ~ +60
Storage Temperature (°C): - 30 ~ +70
Weight (g): 3.2
Case Material and colour: PPO / Black
