THT - Piezo Transducer

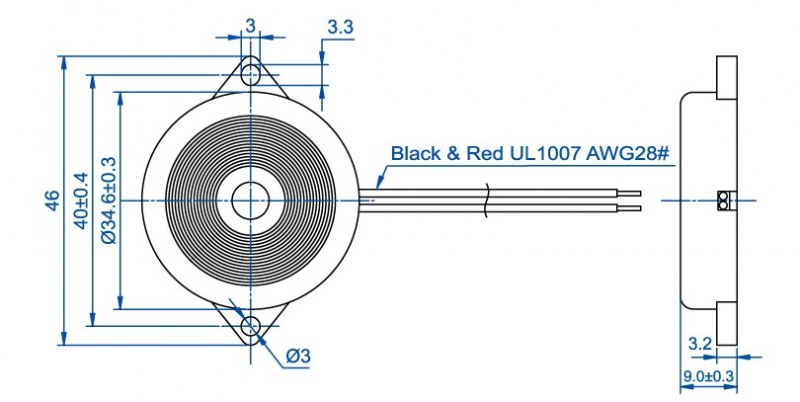

T3590AW
Rated Voltage (Vp - p): 12
Operating Voltage (Vp - p): 1 ~ 30
Resonance Frequency (Hz): 1000 ± 500
Capacitance at 120Hz (pF): 50000 ± 30%
Sound Output at 10cm (dB): ≥ 85
Current Consumption (mA): ≤ 10
Operating Temperature (°C): - 20 ~ +60
Storage Temperature (°C): - 35~ +70
Weight (g): 6
Case Material and Colour: ABS / Black
