THT - Piezo Transducer

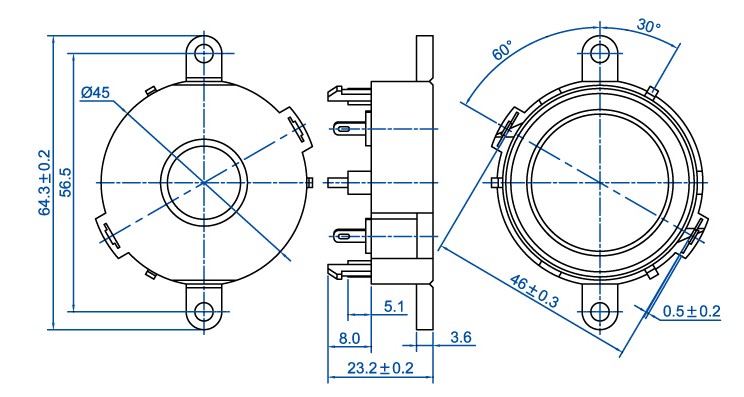

T4524
Rated Voltage (Vp - p): 12
Operating Voltage (Vp - p): 3 ~ 50
Resonance Frequency (Hz): 3200 ± 500
Capacitance at 120Hz (PF): 25000 ± 30%
Sound Output at 30cm (dB): ≥ 95
Current Consumption (mA): ≤ 100
Operating Temperature (°C): - 40 ~ +95
Storage Temperature (°C): - 40 ~ +105
Weight (g): 11
