BUZZERS
SMD - Electro Magnet Transducer

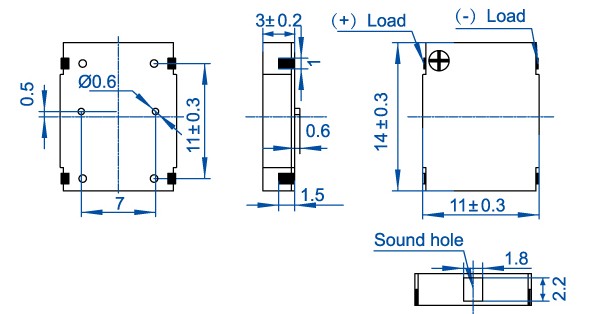

T1411AS

Rated Voltage (V): 5
Operating Voltage (V): 3 ~ 7
Current Consumption (mA): ≤ 40
Resonance Frequency (Hz): 2731
Coil Resistance (Ω): 40 ± 4
Sound Output at 10cm (dB): ≥ 90
Operating Temperature (°C): - 20 ~ +70
Storage Temperature (°C): - 30 ~ +80
Weight (g) : 0.3
Housing Material: LCP
