CONNECTORS
SATA and ESATA

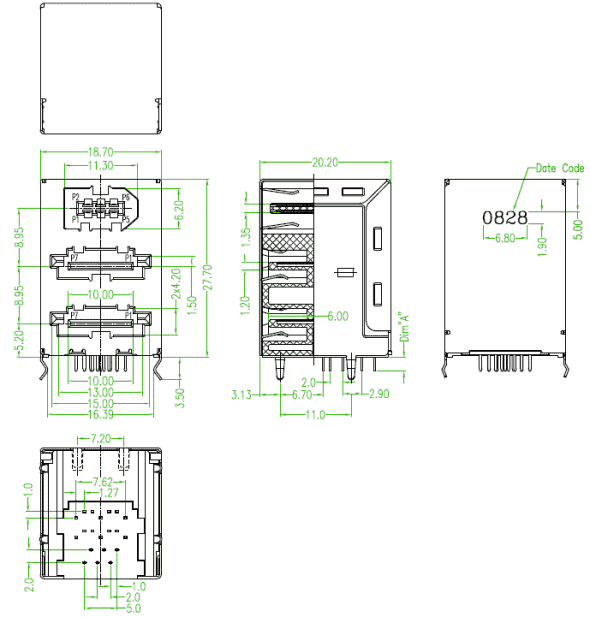

ESATA2IE-20SR-U


Current Rate:
1.5A

Insulation Resistance:
eSATA: 1000M ohm. Min

Insulation Resistance:
1394: 100M ohm. Min

Contact Resistance:
30m ohm. Max

Dielectric Voltage:
500V AC/minute

Operation Temperature:
- 55°C to +125°C
