CONNECTORS
SATA and ESATA

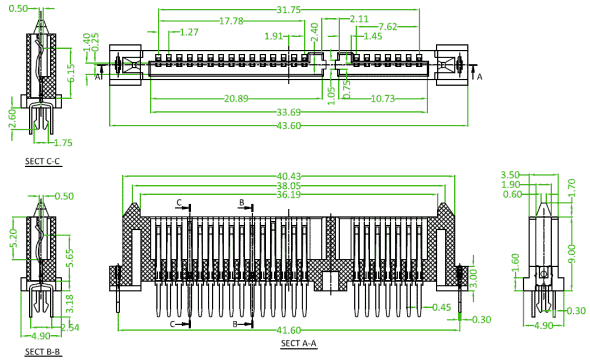

SATAS-X22SB-XX-U


Current Rate:
1.5A

Insulation Resistance:
1000M ohm. Min

Contact Resistance:
30m ohm. Max

Dielectric Voltage:
500V AC/minute

Operation Temperature:
- 55°C to +125°C
